This unique universal air filter is lightweight. Its carbon fiber top and flange provides outstanding strength with minimal weight. The smooth, glass like appearance provides the ultimate in finish, fit, and function.

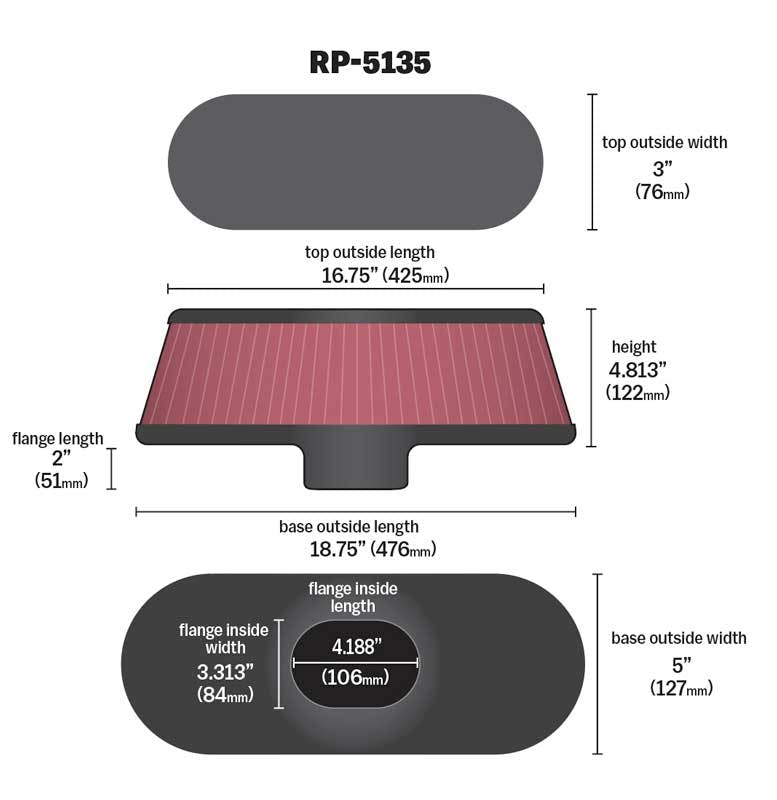

The RP-5135 Universal Air Filter is constructed from an oiled cotton filter media. It comes with a K&N embossed carbon fiber top and carbon fiber base for strength and durability. The carbon fiber element adds to the light-weight design and gives this filter a smooth glass like finish. The RP-5135 is a clamp-on filter that has an inside flange diameter of 3-5/16 inches and a flange length of 2 inches. The base is 18-3/4 inches by 5 inches and the filter height is 4-13/16 inches. The filter top has a threaded hole to accommodate a 6 millimeter bolt for easy mounting.
- Designed to increase horsepower and acceleration
- Strong and long-lasting clamp-on design
- Carbon fiber composite increases aesthetics
- Lighter than conventional filter tops
- Washable and reusable
- One year limited warranty
- Pliable flanges absorb vibration and can be stretched up to 1/16 In. to fit in-between sizes
Application Summary:
| Year |
Make/Model |
| 2005-2007 |
Chevrolet Corvette |
| Attributes |
| Air Filter Material |
Cotton Gauze |
| Air Filter Outlet Shape |
Oval |
| Air Filter Shape |
Oval Straight |
| Alternate Part Number |
RP-5135 |
| ASIN |
B000E7H41W |
| Automotive Item Grade |
High Performance |
| Base Outside Length |
18.75 in (476 mm) |
| Base Outside Width |
5 in (127 mm) |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Carb/Air Horn Dia. (in.) |
2 |
| CARB/Air Horn Diameter |
2.000 in. |
| CARB/Air Horn Diameter (in.) |
2.000 in. |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Filter Material |
Cotton Gauze |
| Filter Re-Oiling Amount |
2.04 oz (60 ml), 1.82 oz (54 ml) |
| Flange Angle |
0 degrees, 0 Degree |
| Flange Inside Length |
4.188 in (106 mm) |
| Flange Inside Width |
3.313 in (84 mm) |
| Flange Length |
2 in (51 mm) |
| Flange Type |
Centered |
| Flanges |
1 |
| Frame Design |
Flexible |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Height |
4.813 in (122 mm) |
| Height (in.) |
4.813 in. (122 mm) |
| Item Height |
4.813 in. (122mm) |
| Item Type |
High Performance |
| Item Weight |
1.000 lbs. (0.4 kg) |
| Life Cycle Status Code |
Available to Order |
| Machine Washable |
Yes |
| Material |
Rubber Base |
| NAFTA Preference Criterion Code |
B |
| Number of Flanges |
1 |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Overall Filter Efficiency |
Up To 99% Efficiency |
| Package Content |
1 |
| Package Contents |
1 Air Filter |
| Package Material |
Paperboard |
| Package Quantity |
1 |
| Package Type |
Box |
| Pre-Screened |
No |
| Product Box Height |
10.75 in (273 mm), 10.750 in. (273mm) |
| Product Box Length |
20.38 in (518 mm), 20.380 in. (518mm) |
| Product Box Width |
10.38 in (264 mm), 10.380 in. (264mm) |
| Product Style |
Unique Air Filters |
| SDR Required Flag |
N |
| Shape |
Oval Straight |
| Top Outside Length |
16.75 in (425 mm) |
| Top Outside Width |
3 in (76 mm) |
| Top Style |
Carbon Fiber |
| Warranty Time |
3 |
| Washable |
Yes |
| Weight |
0.9 lb (0.4 kg) |
| GTIN |
00024844112521 |
