This unique universal air filter is lightweight. Its carbon fiber top and flange provides outstanding strength with minimal weight. The smooth, glass like appearance provides the ultimate in finish, fit, and function.

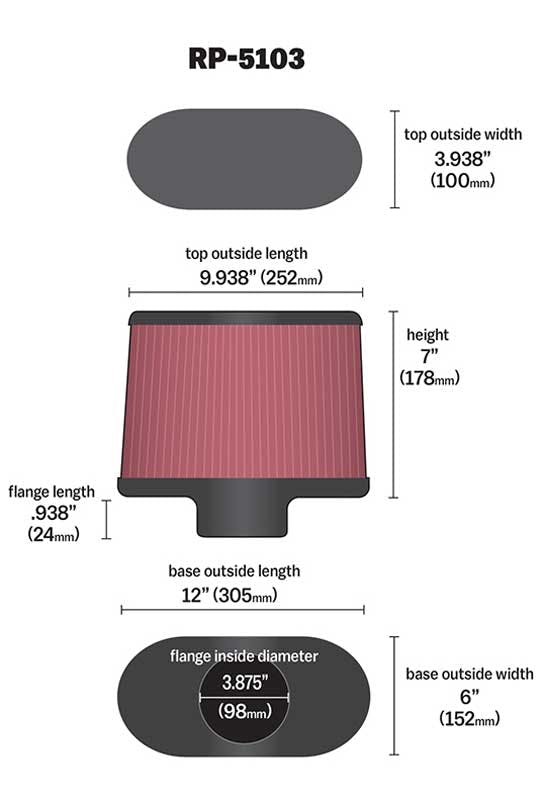

The RP-5103 Universal Air Filter is constructed from an oiled cotton filter media. It comes with a K&N embossed carbon fiber top and base for strength and durability. The carbon fiber element adds to the light-weight design and gives this filter a smooth glass like finish. The RP-5103 is a clamp-on filter that has an inside flange diameter of 3 7/8 inches and a flange length of 15/16 inches. The base is 12 inches by 6 inches and the filter height is 7 inches.
- Strong and long-lasting clamp-on design
- Carbon fiber composite increases aesthetics
- Lighter than conventional filter tops
- Washable and reusable
- One year limited warranty
- Pliable flanges absorb vibration and can be stretched up to 1/16 In. to fit in-between sizes
- Designed to increase horsepower and acceleration
Application Summary:
| Year |
Make/Model |
| 2003-2007 |
Hummer H2 |
| Attributes |
| Air Filter Material |
Cotton Gauze |
| Air Filter Outlet Shape |
Oval |
| Air Filter Shape |
Oval Straight |
| Alternate Part Number |
RP-5103 |
| ASIN |
B000630IB2 |
| Automotive Item Grade |
High Performance |
| Base Outside Length |
12 in (305 mm) |
| Base Outside Width |
6 in (152 mm) |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Carb/Air Horn Dia. (in.) |
3.875 |
| Color |
Heather Red |
| Country of Origin (Primary) |
US |
| Diameter Inside (in.) |
N/A |
| Emission Code |
Legal US |
| Filter Material |
Cotton Gauze |
| Filter Re-Oiling Amount |
1.7 oz (50 ml) |
| Flange Angle |
0 degrees, 0 Degree |
| Flange Inside Diameter |
3.875 in (98 mm) |
| Flange Length |
0.938 in (24 mm) |
| Flange Material |
Carbon Fiber |
| Flange Outside Diameter |
3.875 in (98 mm) |
| Flange Type |
Centered |
| Flanges |
1 |
| Frame Design |
Flexible |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Height |
7 in (178 mm) |
| Height (in.) |
7.00 in. (178mm) |
| Inside Diameter |
N/A |
| Item Height |
7.000 in. (178mm) |
| Item Type |
High Performance |
| Item Weight |
1.000 lbs. (0.4 kg) |
| Life Cycle Status Code |
Available to Order |
| Machine Washable |
Yes |
| Material |
Rubber Base |
| NAFTA Preference Criterion Code |
B |
| Number of Flanges |
1 |
| Oil Included |
Yes |
| Outside Length |
12 in (305 mm) |
| Overall Filter Efficiency |
Up To 99% Efficiency |
| Package Content |
1 |
| Package Contents |
1 Air Filter |
| Package Material |
Paperboard |
| Package Quantity |
1 |
| Package Type |
Box |
| Pre-Screened |
No |
| Product Box Height |
8.75 in (222 mm), 8.75 in. (222mm) |
| Product Box Length |
13.38 in (340 mm), 13.38 in. (340mm) |
| Product Box Width |
9 in (229 mm), 9.00 in. (229mm) |
| Product Style |
Unique Air Filters |
| SDR Required Flag |
N |
| Shape |
Oval Straight |
| Top Outside Length |
9.938 in (252 mm) |
| Top Outside Width |
3.938 in (100 mm) |
| Top Style |
Carbon Fiber |
| Warranty Time |
3 |
| Washable |
Yes |
| Weight |
0.9 lb (0.4 kg) |
| GTIN |
00024844102157 |
