K&N Composite Top Universal Air Filters - With advanced composite technology, carbon fiber provides the ultimate in strength with minimal weight. Carbon fiber provides 1/3 less weight than a conventional filter top.

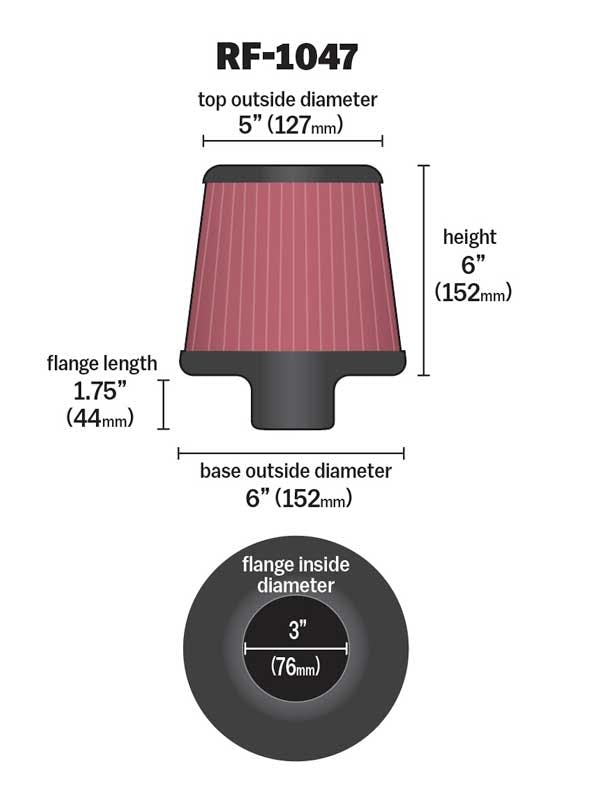

The RF-1047 Universal Air Filter is constructed from an oiled cotton filter media. It comes with a K&N embossed carbon fiber top for strength and durability. The carbon fiber element adds to the light-weight design and gives this filter a smooth glass like finish. The RP-1047 is a clamp-on filter that has an inside flange diameter of 3 inches and a flange length of 1-3/4 inches. The base diameter and filter length are 6 inches.
- Clamp-on design
- Carbon fiber composite increases aesthetics
- Strong and long-lasting
- Lighter than conventional filter tops
- Washable and reusable
- One year limited warranty
- Pliable flanges absorb vibration and can be stretched up to 1/16 In. to fit in-between sizes
Application Summary:
| Year |
Make/Model |
| 2009-2013 |
Audi A4 |
| 2010 |
Audi A4 Quattro |
| 2008-2015 |
Mitsubishi Lancer |
| Attributes |
| Air Filter Color |
Red |
| Air Filter Large End Diameter |
6 in (152 mm), 6.000 in. (152mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Shape |
Round Tapered |
| Alternate Part Number |
RF-1047 |
| ASIN |
B00062ZNDQ |
| Automotive Item Grade |
High Performance |
| Base Outside Diameter |
6 in (152 mm) |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Carb/Air Horn Dia. (in.) |
3 |
| Color |
Heather Red |
| Country of Origin (Primary) |
US |
| Diameter Inside (in.) |
3 |
| Emission Code |
Legal US |
| Filter Material |
Cotton Gauze |
| Filter Re-Oiling Amount |
1.17 oz (34 ml) |
| Flange Angle |
0 degrees, 0 Degree |
| Flange Inside Diameter |
3 in (76 mm) |
| Flange Length |
1.75 in (44 mm) |
| Flange Offset |
0 in (0 mm), 0.000 in. (0mm) |
| Flange Type |
Centered |
| Flanges |
1 |
| Frame Design |
Flexible |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Height |
6 in (152 mm) |
| Height (in.) |
6.000 in. (152mm) |
| Inside Diameter |
3.000 in. |
| Item Height |
6.000 in. (152mm) |
| Item Type |
High Performance |
| Item Weight |
1.200 lbs. (0.6 kg) |
| Life Cycle Status Code |
Available to Order |
| Machine Washable |
Yes |
| Material |
Rubber Base |
| NAFTA Preference Criterion Code |
B |
| Number of Flanges |
1 |
| Oil Included |
Yes |
| Overall Filter Efficiency |
Up To 99% Efficiency |
| Package Content |
1 |
| Package Contents |
1 Air Filter |
| Package Material |
Paperboard |
| Package Quantity |
1 |
| Package Type |
Box |
| Pre-Screened |
No |
| Product Box Height |
11 in (279 mm), 11.00 in. (279mm) |
| Product Box Length |
6.38 in (162 mm), 6.38 in. (162mm) |
| Product Box Width |
6.38 in (162 mm), 6.38 in. (162mm) |
| Product Style |
Round Tapered Universal Air Filter |
| SDR Required Flag |
N |
| Shape |
Round Tapered |
| Top Material |
None |
| Top Material/Finish |
None |
| Top Outside Diameter |
5 in (127 mm), 5.000 in. (127mm) |
| Top Style |
Carbon Fiber |
| Warranty |
1 Year Limited |
| Warranty Time |
12 |
| Washable |
Yes |
| Weight |
1.2 lb (0.6 kg) |
| GTIN |
00024844080165 |
